Panasonic 5 year parts and labour warranty

Z Series split system

Reverse-cycle heating and cooling that also cleans the air in the room, all day, whether the unit is running or not.

Find my size Enquire

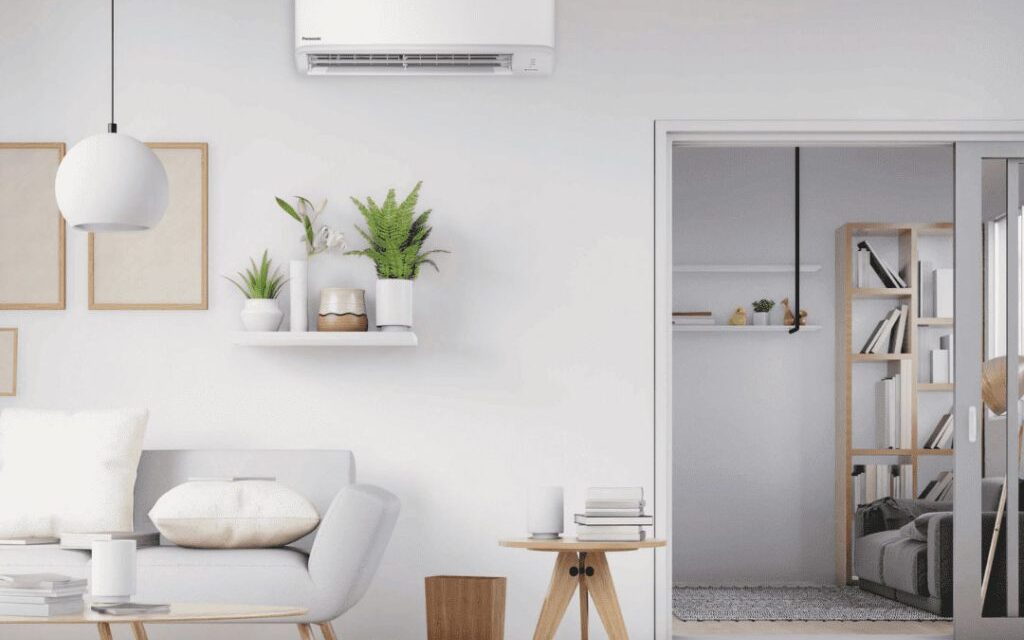

Panasonic Z Series wall unit above a sofa in a light living room

Sizes: 7 from 2.5 to 8.0 kW

Quietest setting: 19 dB(A)

Air purification: nanoe X

Control: Wifi built in

Refrigerant: R32

Warranty: 5 years

The Z Series is Panasonic’s premium wall-mounted split system. It heats and cools like any good inverter unit, then keeps working when it is switched off: the nanoe X generator inside keeps releasing hydroxyl radicals into the room to break down odours, allergens and airborne bacteria.

It runs on R32 refrigerant, has wifi built in rather than as an add-on, and the smallest models drop to 19 decibels on the quiet setting, which is below a whisper. Adelaide’s climate zone ratings are shown in the table below, not the best-case figures.

We size it for your room, arrange installation by licensed technicians, and service it afterwards.

Reverse cycle: heating and cooling from one unit
nanoe X air purification runs with the fan off
Sensitive Choice approved by the National Asthma Council
Comfort Cloud app and wireless remote included
Eco mode with AI learns your usage and trims running cost
Blue Fin coated outdoor coil for coastal and dusty sites
Heats down to −15°C outside, cools up to 46°C

Which size does your room need?

Move the slider to your room’s floor area. The suggestion uses a rule of thumb for Adelaide homes. We confirm it on the site visit, where we also check the wall, the power supply and where the outdoor unit can go.

Suggested for this room

CS/CU-Z35XKR3.5 kW

Cooling: 3.5 kW
Heating: 4.0 kW
Stars, Adelaide zone: 4.0 / 3.0 cool / heat
Quietest indoor: 19 dB(A)
Indoor unit: 779 mm wide
Warranty: 5 years

Enquire about this size Your selection is added to the enquiry.

The full range

Figures from Panasonic’s Australian specification sheet.

Model	Z25XKR2.5 kW	Z35XKR3.5 kW	Z42XKR4.2 kW	Z50XKR5.0 kW	Z60XKR6.0 kW	Z71XKR7.1 kW	Z80XKR8.0 kW
Cooling capacity, kW	2.5	3.5	4.2	5.0	6.0	7.1	8.0
Heating capacity, kW	3.0	4.0	5.1	6.0	6.5	8.0	9.0
Typical room, m²	10–19	20–27	28–32	33–38	39–46	47–54	55–61
Stars, cooling / heating	4.0 / 3.0	4.0 / 3.0	3.5 / 2.5	3.5 / 2.5	3.5 / 3.0	3.5 / 2.5	3.5 / 2.5
Indoor noise, quiet / high dB(A)	19 / 40	19 / 44	28 / 44	28 / 44	33 / 47	34 / 49	35 / 51
Outdoor noise, dB(A)	48	49	49	48	49	54	55
Airflow, L/s	200	202	202	228	339	367	377
Indoor unit, H × W × D mm	290 × 779 × 209	290 × 779 × 209	290 × 779 × 209	290 × 779 × 209	295 × 1,040 × 244	295 × 1,040 × 244	295 × 1,040 × 244
Outdoor unit, H × W × D mm	542 × 780 × 289	542 × 780 × 289	619 × 824 × 299	619 × 824 × 299	619 × 824 × 299	695 × 875 × 320	795 × 875 × 320
Weight indoor / outdoor, kg	8 / 25	8 / 30	8 / 32	8 / 35	12 / 35	13 / 45	13 / 60
Max pipe run, m	20	20	20	30	30	30	30

Star ratings are for the average climate zone, which includes Adelaide. Noise is sound pressure at 1 m on the quiet and high fan settings in cooling. Typical room sizes assume a 2.4 m ceiling and reasonable insulation.

Why this one over a cheaper split

Most split systems heat and cool. The Z Series earns its place with what it does to the air, how quietly it does it, and how little attention it needs.

It keeps cleaning the air when the heating and cooling are off

nanoe X releases hydroxyl radicals wrapped in tiny water particles. They attach to odours, pollen, mould spores and bacteria in the air and on soft surfaces like curtains and sofas, and break them down. It runs on its own with the fan barely turning, so a bedroom can be freshened all day for almost nothing.

OdoursCooking, pets, smoke and damp smells are reduced, not masked.
Allergens and pollenSensitive Choice approved by the National Asthma Council Australia.
Bacteria and virusesInhibits up to 99% of tested airborne and surface microbes.
MouldSuppresses growth on surfaces in humid rooms.
Skin and hairMoisture-rich particles, so the room does not feel dried out.
No filters to buyThe generator is maintenance-free; the panel filter simply washes.

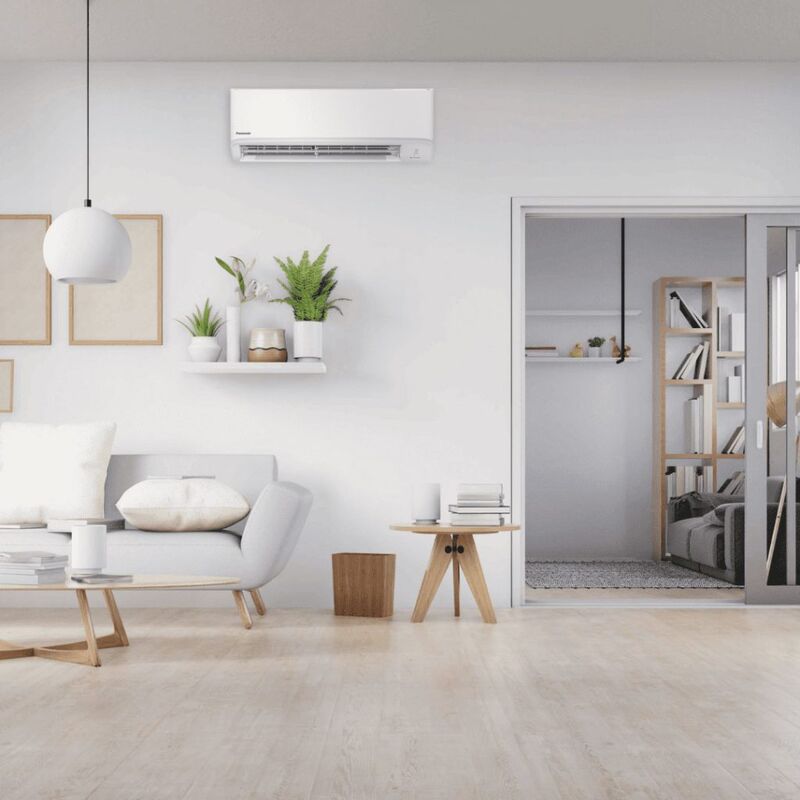

Light living room with a Panasonic wall unit

Quiet enough for a bedroom

On the quiet fan setting the 2.5 and 3.5 kW units run at 19 decibels. That is quieter than a whisper and quieter than most fridges. Even the largest 8 kW unit sits at 35 on quiet.

Quiet mode drops the outdoor unit too, for neighbours and courtyards
Sleep timer eases the temperature overnight
Aerowings twin louvres send cooled air along the ceiling, not onto you

Indoor sound pressure in dB(A) at one metre. Every 10 dB is roughly twice as loud to the ear.

Cheaper to run than the last one you had

Eco mode with AI watches how you use the room and trims the compressor to the smallest output that holds your set temperature, which Panasonic rates at up to 20% less energy than normal operation. The inverter compressor ramps smoothly instead of switching on and off.

Eco mode with AI control
R32 refrigerant: lower global-warming potential than R410A
Heats reliably down to −15°C outside, cools to 46°C
Demand-response ready for SA Power Networks programs

Three ways to run it

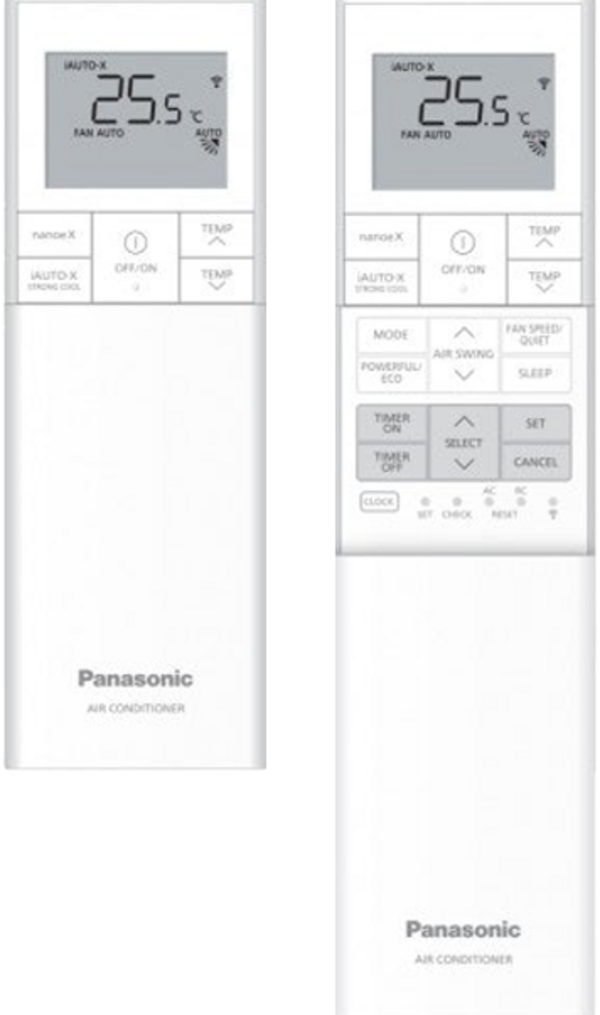

Wireless remote

Backlit, with one-touch quiet, powerful and nanoe X buttons and a 24-hour timer.

Included

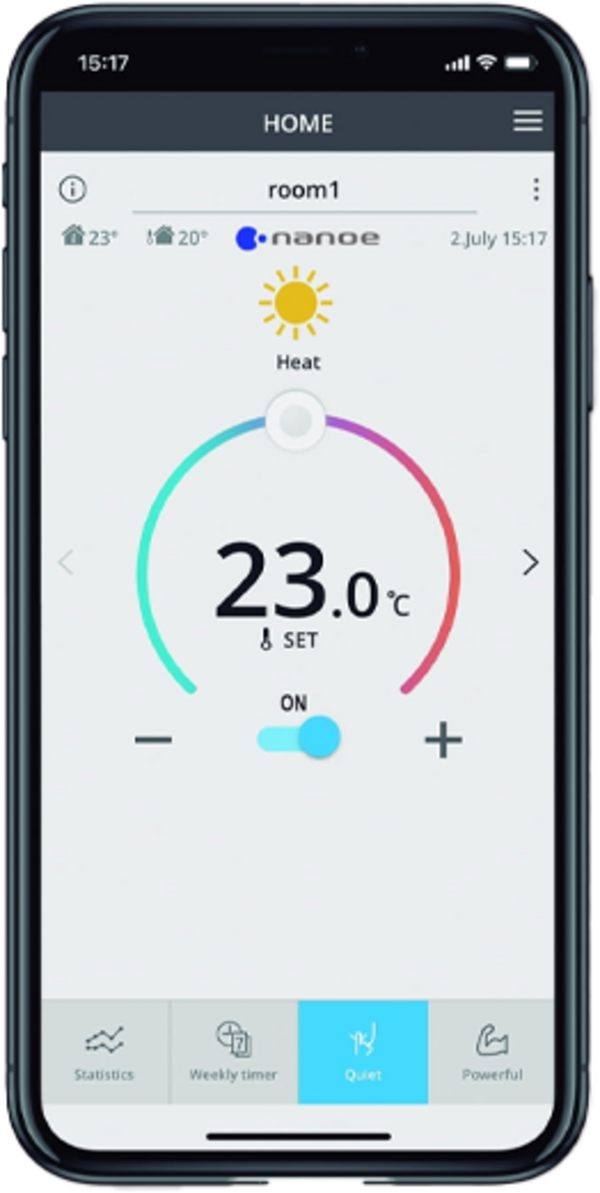

Comfort Cloud app

Wifi is built into the unit. Turn it on from the car, set weekly schedules and see energy use by day.

Included, works with Google and Alexa

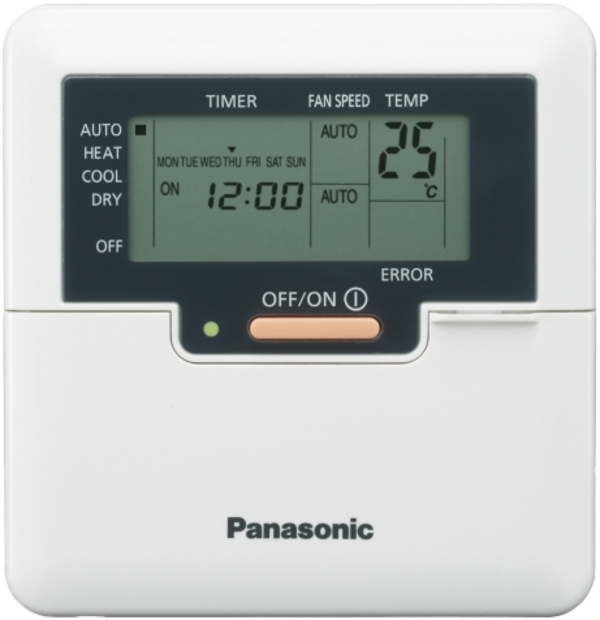

Wired wall controller

A fixed controller on the wall for rentals, offices and anyone who loses remotes.

Optional, CZ-RD514C

Installation arranged and managed by Gas Works

The unit is only half of it. A split system lives or dies on where it is placed, how the pipework is run and whether the electrical work is done properly.

Site check

We look at the room, the wall, the roof space or external route for the pipes, and where the outdoor unit can sit without upsetting the neighbours.
One written quote

Unit, brackets, pipework, electrical circuit and any council or strata paperwork in a single figure. No surprises on the day.
Installed in a morning

ARCtick-licensed technicians and licensed electricians. Most back-to-back installs are finished by lunch and commissioned before they leave.
Serviced through Gas Works

A clean and check every couple of years keeps the efficiency up and the warranty intact. Same phone number.

See and hear it in the showroom

Z Series on display and running

Modbury

Shop 1, Tea Tree Plus Shopping Centre
1020 North East Road, Modbury SA 5092

Mon to Fri 9am–5pm, Sat 9am–2pm

(08) 8396 5498 Directions

Z Series on display and running

Morphett Vale

365 Main South Road
Morphett Vale SA 5162

Mon to Fri 9am–5pm, Sat 9am–2pm

(08) 8326 8881 Directions

Get a quote for the Z Series

Tell us about the room and we will reply within one business day with a recommended size and the next available site visit.

Prefer to talk? (08) 8396 5498 Modbury or (08) 8326 8881 Morphett Vale. Interest-free finance is available. How finance works
